Waterless Ink

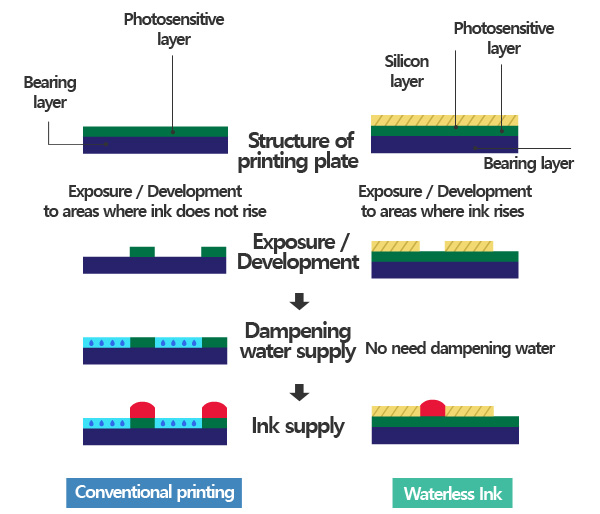

What is Waterless Printing ?
The Waterless printing is a printing method in which the traditional dampening is avoided in order to print the image of the printing plate and the waterless plate is used in which the non-image area is treated with a layer of silicone rubber. In conventional damping (offset) printing, a large amount of wastewater is generated due to the use of water (dampening) during printing, and various harmful substances are contained. In Waterless printing with no use water, it avoids the use of harmful substances such as alcohol, protects the health of workers, and enables environmentally friendly printing.
Product Range for Waterless Ink
| Sheetfed ink | Heatset ink | Coldset ink |
|---|---|---|
| ECOLON Waterless | SPECTRUM Waterless | WEB STAR Waterless |
| ECOLON UV Waterless |

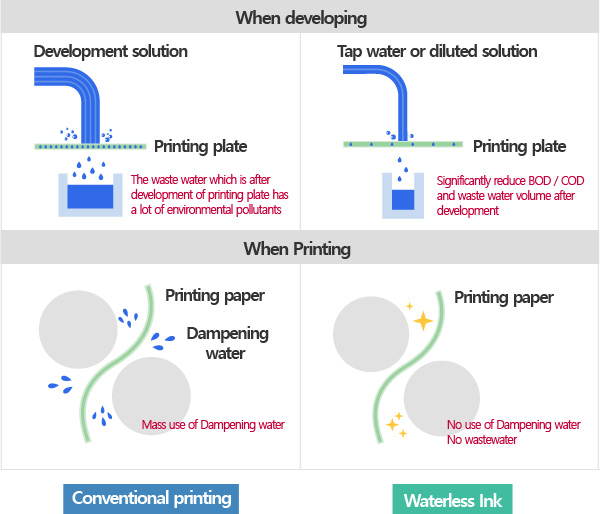

Comparison with Conventional Offset / Waterless Offset Printing
Features of Waterless Ink
- ① Reduction of environmental hazard by unused dampening water, health protection of workers
- ② No need to adjust the balance of ink and dampening water
- ③ Better dot reproducibility
- ④ Reduced dry down after printing, due to no dampening water
Printing condition for Waterless printing
- ① Conventional offset press + Chiller Cooling Facility Or exclusive waterless printing press ( ex, KBA Cortina )
- ② Using Waterless plate
- ※ Available to convert from the conventional press to waterless printing
Sheetfed Waterless
| Product name | Color | Type | C.T.I | Packing |
|---|---|---|---|---|
| ECOLON Waterless | YELLOW |
H type N type S type |
23 ~ 35 |
1kg tin 1kg / 2.5kg vacuum |
| MAGENTA | ||||
| CYAN | ||||
| BLACK |
| Product name | Color | Type | C.T.I | Packing |
|---|---|---|---|---|
| ECOLON UV Waterless | YELLOW |
H type N type S type |
23 ~ 34 |
1kg tin 1kg / 2.5kg vacuum |
| MAGENTA | ||||
| CYAN | ||||
| BLACK |
CTI Critical Tonning Index H Hard N Normal S Soft
Scroll right to see more tables.
Heatset Waterless
| Product name | Color | Type | C.T.I | Packing |
|---|---|---|---|---|
| SPECTRUM Waterless | YELLOW |
N type S type SS type |
23 ~ 37 | 200kg drum |
| MAGENTA | ||||
| CYAN | ||||
| BLACK |
Scroll right to see more tables.
Coldset Waterless
| Product name | Color | Usage | C.T.I | Packing |
|---|---|---|---|---|
| WEB STAR Waterless | YELLOW | KBA Cortina 용 | 23 ~ 30 |
200kg drum 900kg conicube 1,000kg bag in box |
| MAGENTA | ||||
| CYAN | ||||
| BLACK |
Scroll right to see more tables.
